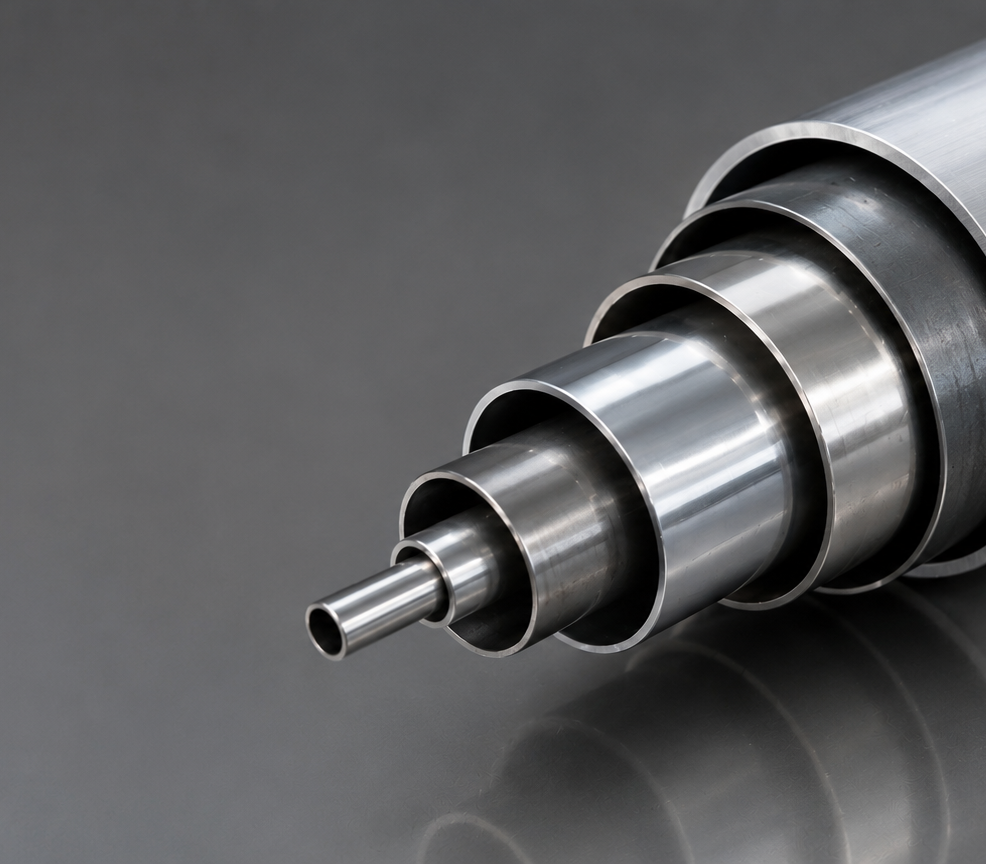

Round Tube
OD ranges from small bore to heavy wall
Precision Tube Processing
Laser Tube Cutting.
Cut tubing faster than the blueprint can be redlined.
Overview
Built for the way your parts are built.
High-speed fiber laser tube cutting for round, square, rectangular, and structural profiles. Holes, slots, end-prep, and weld-ready joints in a single setup.
- Round, square, rectangular, and structural shapes
- Single-setup cuts, holes, slots, and copes
- Tight tolerances and weld-ready edge quality
- Programmed from 3D models for first-part accuracy
On the floor
TRUMPF TruLaser Tube 3000
Production tube cutting for round, rectangular, and open profiles up to 170 mm.
- Round, rectangular, and open profiles — including L- and U-shapes with adaptive clamping
- Bevel cuts up to 45° for weld-ready edges in a single setup
- Mandrel-free precision guides for fast, low-distortion processing
- Automatic seam detection and alignment with SeamLine Tube
- Self-centering collet chuck — no retooling across the standard size range
Specifications
- Max outside diameter / side
- 170 mm
- Max raw material length
- 8.0 m
- Max workpiece weight
- 18.5 kg/m
- Laser source
- Up to 3 kW TruFiber
- Mild steel wall thickness
- Up to 8 mm
- Stainless / aluminum wall
- Up to 6 mm
- Copper / brass wall
- Up to 4 mm
- Bevel cutting
- Up to 45°
Manufacturer specifications. Actual capabilities may vary by material and configuration.
What we cut
What we cut, end to end.

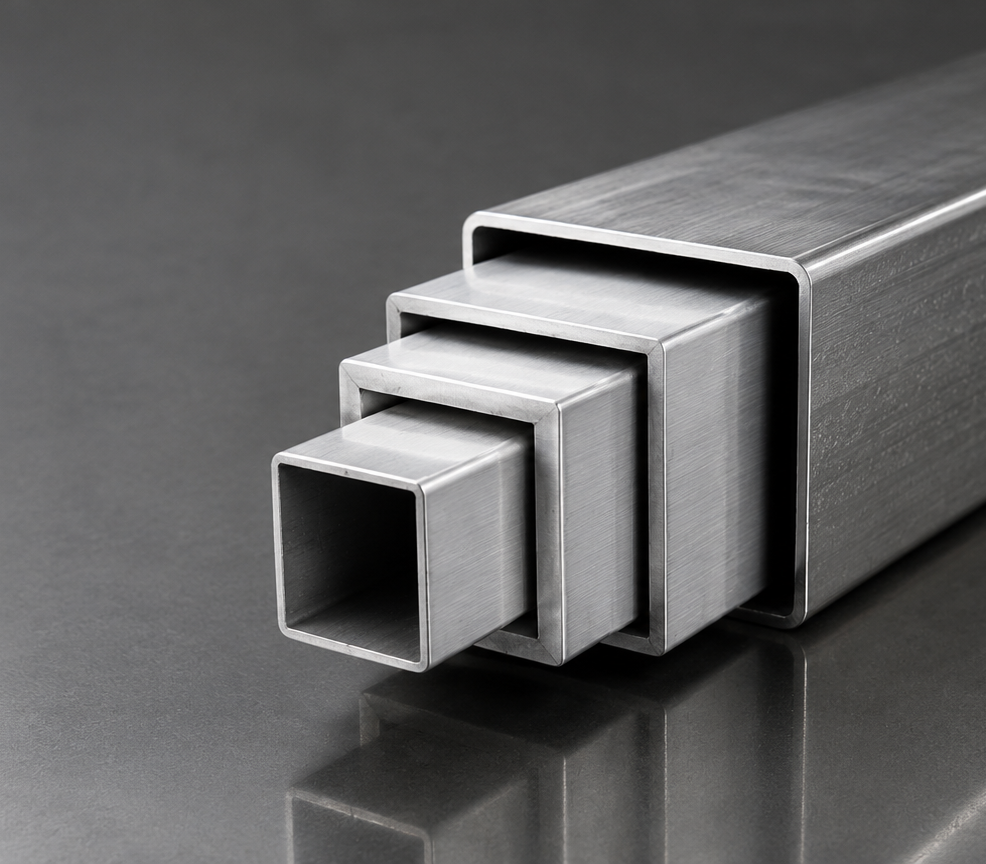

Square Tube
Sharp, weld-ready corners every time

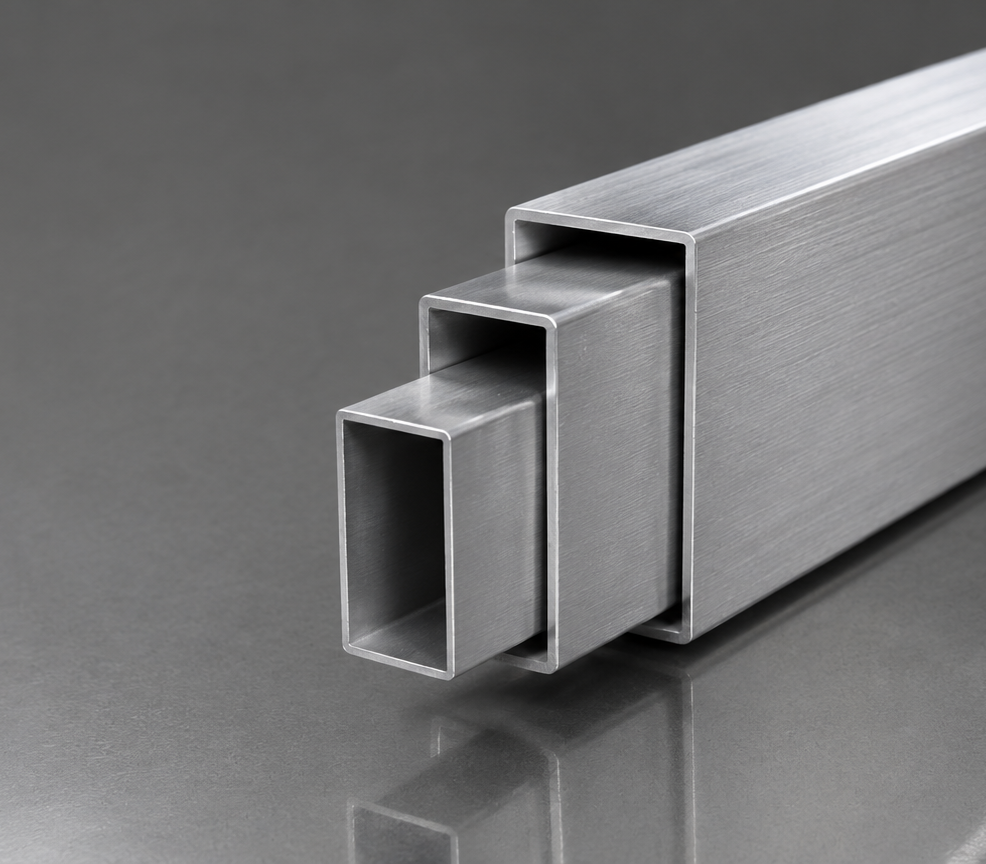

Rectangular Tube
Frames, sub-structure, and chassis stock

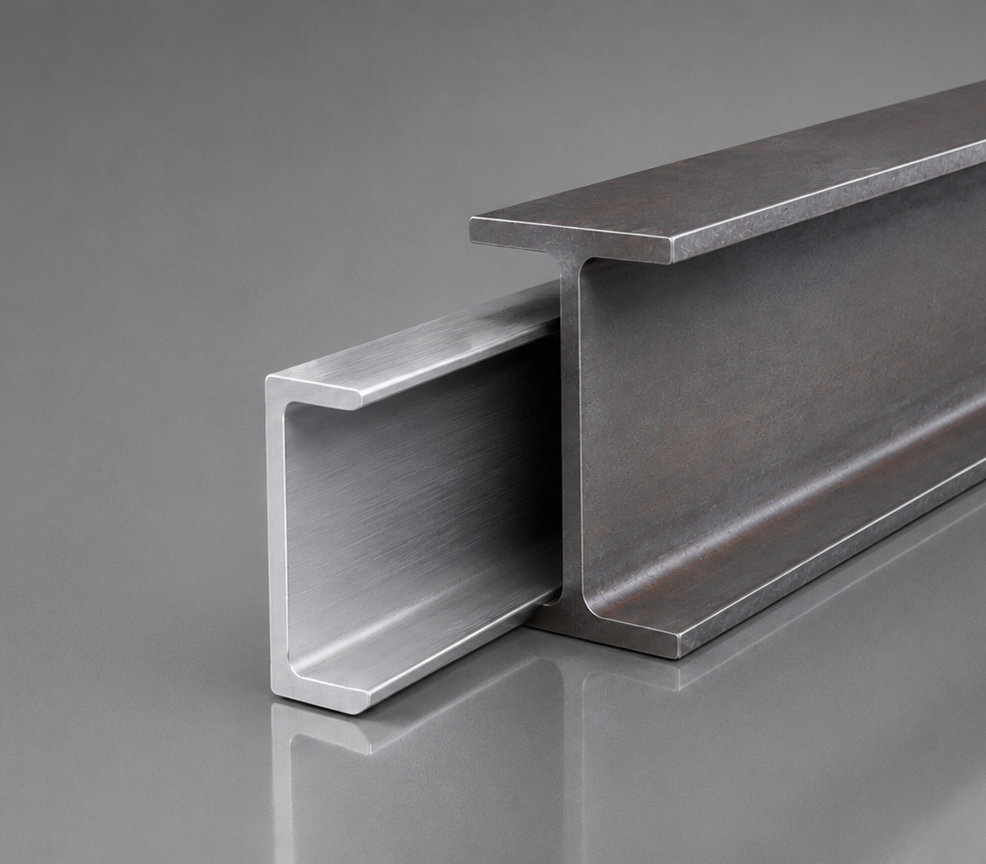

Structural Profiles
Angle, channel, and beam in a single setup
End Prep
Miters, copes, and fish-mouths to print
Hole Patterns
Mounting holes, vents, and access cutouts
Slot Geometry
Thru-slots, key slots, and weld-tab features
Bevel Cuts
Pre-beveled edges for downstream weld prep
Quality
Every part traceable. Every process documented.
Operating under our AS9100 and ISO 9001 quality systems — material certs, inspection records, and revision control on every job.
