Press Brake Forming

Sheet Bending.

Crisp bends, predictable parts, every run.

Sheet Bending Imagery

Overview

Built for the way your parts are built.

CNC press brake forming with offline programming and a deep tooling library. Complex parts produced with repeatable accuracy at any volume.

  • CNC press brake forming with offline programming
  • Extensive tooling library for complex geometries
  • Bend allowance calculated from flat-pattern models
  • Prototype through production volumes

On the floor

TRUMPF TruBend 5130 + ToolMaster Bend

130-ton CNC press brake with 6-axis backgauge, in-cycle angle measurement, and automated tool changing.

  • ToolMaster Bend automatic tool changer: 60 upper / 48 lower tool magazine, tool swaps in seconds — no walk-time, no searching
  • ACB Laser non-contact angle measurement for first-bend accuracy on every part

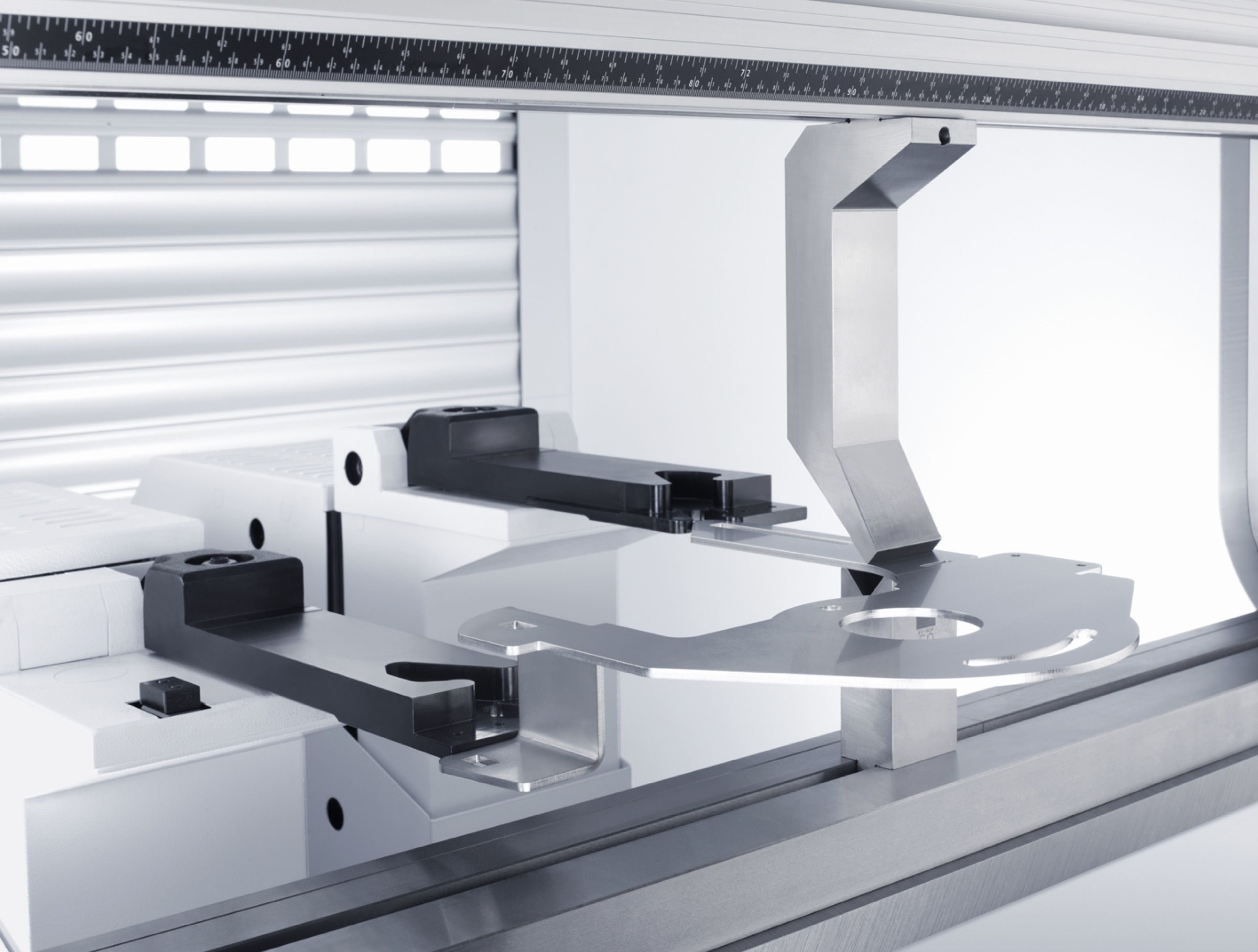

  • Six-axis CNC backgauge for complex geometries in a single setup
  • Thickness Controlled Bending compensates for sheet-to-sheet material variation
  • On-Demand Servo Drive runs quiet and energy-efficient through long production runs

Specifications

Press force
1,300 kN (130 tons)
Max bending length
3,230 mm
Y-axis speed
Up to 25 mm/s
Open height
385 mm (615 mm extended)
Backgauge
6 CNC axes
Tool magazine
60 upper / 48 lower
Max setup length
4.4 m (ToolMaster Bend)
Angle measurement
ACB Laser + Wireless

Manufacturer specifications. Actual capabilities may vary by material and configuration.

Forming capability

Forming capability, end to end.

Channels

U and C channel from light gauge to plate

Enclosures

Boxes, covers, and shrouds bent square

Brackets

Mounts and supports formed to spec

Hems

Closed, open, and teardrop edge hems

Z-Bends

Stepped flanges in one setup

Offsets

Compound bends in tight envelopes

Acute Bends

Beyond-90 angles with custom tooling

Large Parts

Long-bed forming for panels and skins

Quality

Every part traceable. Every process documented.

Operating under our AS9100 and ISO 9001 quality systems — material certs, inspection records, and revision control on every job.

Our credentials

Other capabilities

Explore the rest of the shop.

Precision Tube Processing

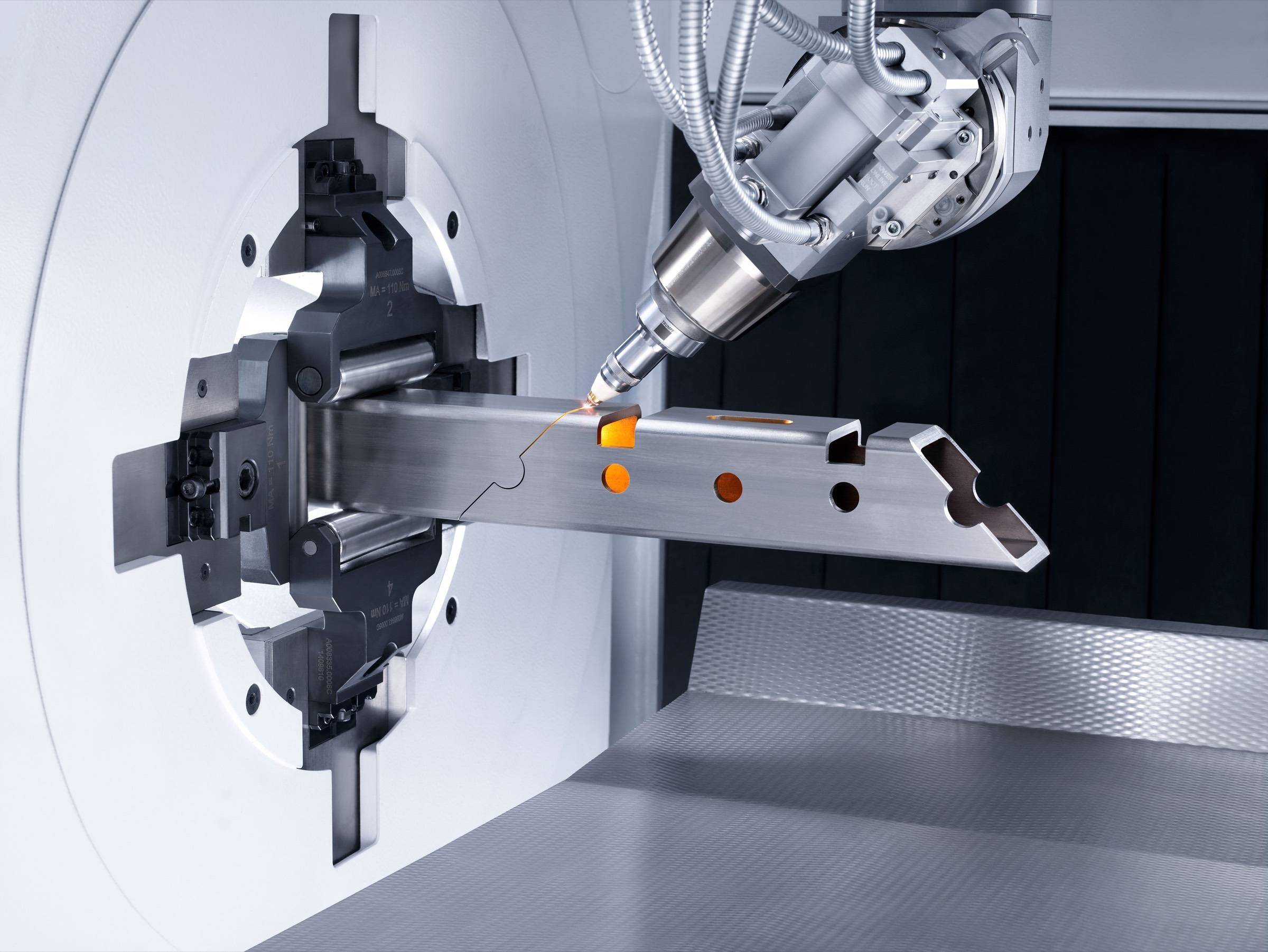

Laser Tube Cutting

Learn more ›

Flat Stock, Flawless Edges

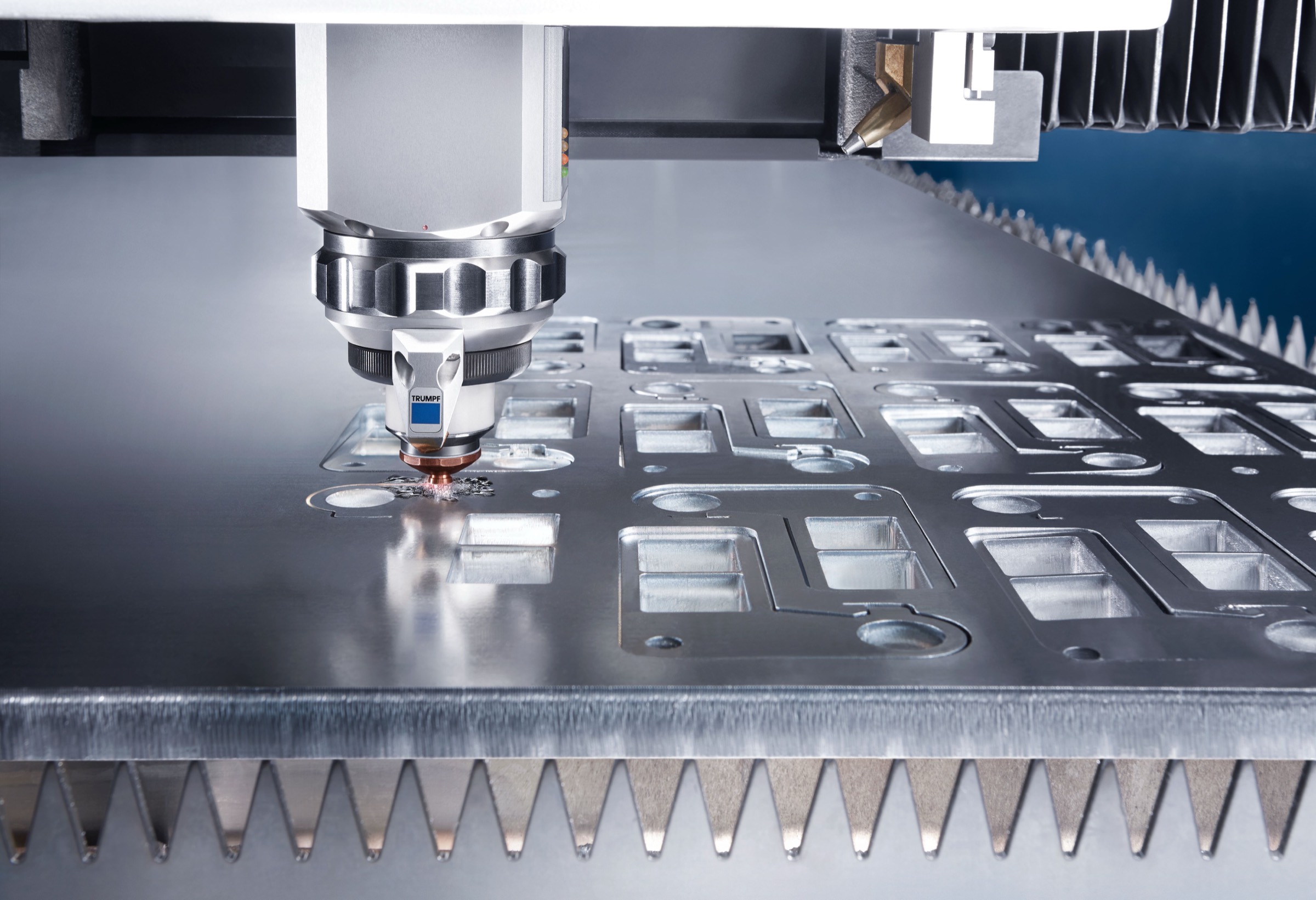

Laser Sheet Cutting

Learn more ›

Surface, Refined

Sheet Metal Finishing

Learn more ›

Complex Geometry, Single Setup

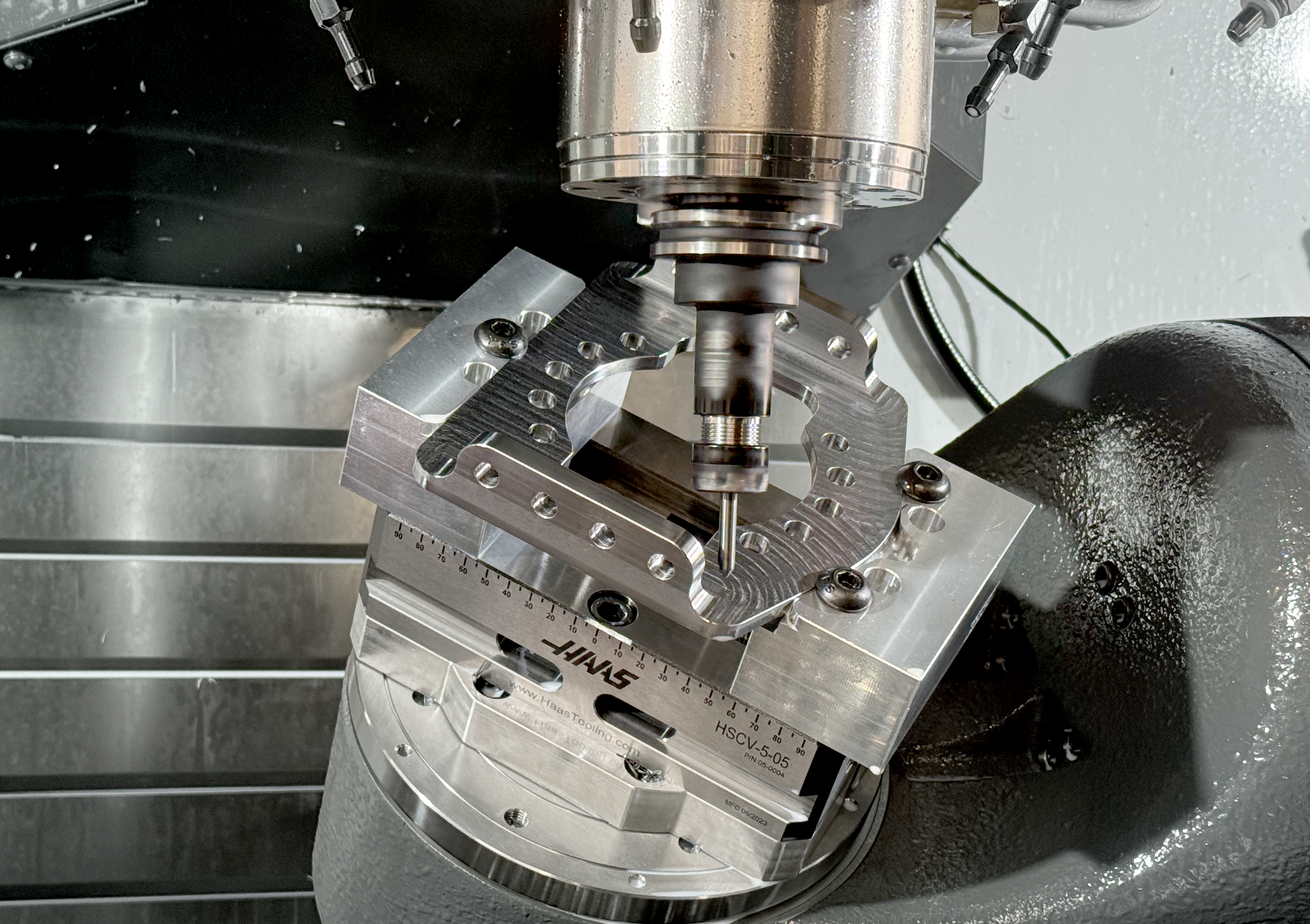

5-Axis CNC Milling
